Shree Metal Syndicate

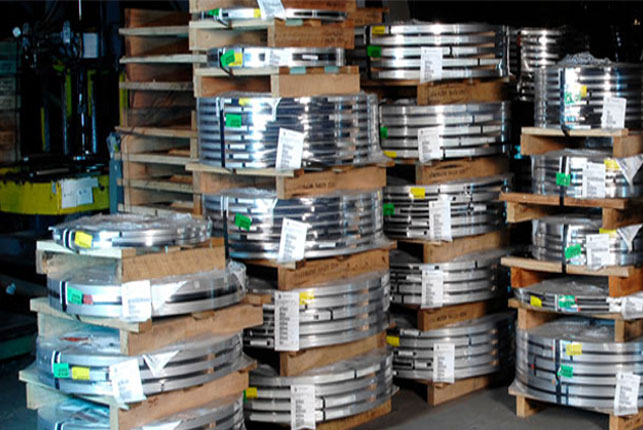

Shree Metal Syndicate is one of leading supplier and stockist of high quality Stainless Steel 409 Sheets, and Coils which find application across diverse sectors.

SS 409 Sheets is a universally useful, chromium, titanium balanced out, ferritic stainless steel whose essential application is car fumes frameworks. SS 409 Plates contains 11% chromium which is the base sum for the development of the inactive surface film which gives stainless steels their erosion resistance. SS 409 Coils joins great lifted temperature erosion resistance with medium quality, great formability, and general expense. Our SS UNS S40900 Sheets Plates is regularly utilized as a part of utilizations where appearance is an optional quality to mechanical properties and erosion resistance.

Specification of Stainless Steel 409 Sheets & Coils :

Standard : ASTM A240 / ASME SA240
Range : 5mm To 150mm
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness of Coils : Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Plain Sheet, Shim Sheet, Perforated Sheet

Chemical Composition :

Grade

409

min.

max.

0.08

1.00

0.045

10.5

11.75

0.5

6x C

0.75

Mechnical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
409	450	240	25	75	131
