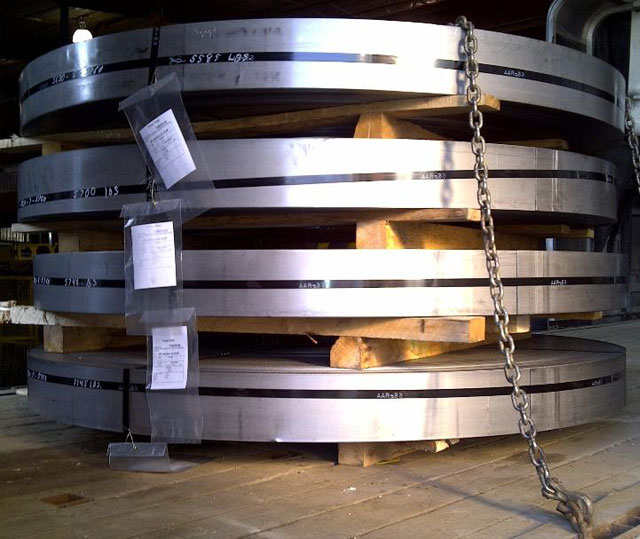

Stainless Steel 441 Sheets / Coils
SS 441 Sheets is a balanced out ferritic stainless steel settled with both titanium and columbium that has great oxidation and erosion resistance, and in addition great high-temperature quality. SS 441 Plates offers higher oxidation resistance, improved creep resistance and moderate formability. Regular utilization of these SS 441 Coils incorporates manufacturers of car, warmth exchanger and tubing parts. These Stainless Steel UNS S44100 Sheets Plates are utilized predominantly for high-temperature settings and destructive situations, especially car fumes framework parts.
Specification of Stainless Steel 441 Sheets & Coils :
- Standard : ASTM A240 / ASME SA240
- Range : 5mm To 150mm
- Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
- Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
- Thickness of Coils : Ranging from 0.3mm to 10mm
- Thickness of Sheets (Cold Rolled) : Ranging from 0.3 mm to 6 mm
- Thickness of Sheets / Plates (Hot Rolled) : Ranging from 3.0 mm to 20 mm
- Hardness : As per ASME A & NACE MR 175
- Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
- Form : Coils, Plain Sheet, Shim Sheet, Perforated Sheet
Chemical Composition :
| Element | Content (%) |
| Chromium, Cr | 17.50-18.50 |
| Titanium, Ti + Niobium, Nb | 0.60 max |
| Carbon, C | 0.02 max |
| Iron, Fe | Remainder |
Mechnical Properties
| Properties | Metric | Imperial |
| Tensile strength (annealed) | 489 MPa | 70900 psi |
| Yield strength (@temperature 871 °C/ 1600 °F ) | 2.90 MPa | 421 psi |
| Modulus of elasticity | 220 GPa | 31908 ksi |
| Elongation at break (in 2", annealed) | 35.90% | 35.90% |
| Hardness, Rockwell B (annealed) | 80 | 80 |
Sheets / Coils
